Comprehensive Guide to Blasting Media Selection: Factors, Types, and Industrial Applications

1. Introduction: The Critical Role of Blasting Media Selection

2. Core Factors in Blasting Media Selection

2.1 Material Compatibility: Beyond Hardness

• Thermal Sensitivity: Heat-sensitive materials like plastics or composites require low-impact media (e.g., plastic grit or walnut shell) to avoid thermal deformation. For example, polycarbonate lenses are safely cleaned with 100-mesh walnut shell grit at low pressure (0.2 MPa).
• Electrical Conductivity: Non-conductive media (e.g., glass beads, corn cob) are critical for blasting electronic components to prevent electrostatic discharge (ESD). In contrast, steel shot is avoided in such scenarios due to conductivity risks.
• Chemical Reactivity: Aluminum and magnesium alloys are prone to corrosion from metallic media residue. Non-ferrous options like plastic grit or crushed glass (e.g., Kramblast) eliminate this risk, making them ideal for aerospace aluminum parts.

2.2 Process Objectives: Layered Requirements

• Dual-Action Processes: For example, automotive wheel refinishing may first use coarse steel grit (G-25) to strip old paint, followed by fine glass beads (200 mesh) for polishing, achieving both efficiency and aesthetic appeal.
• Stress Modification: Shot peening with steel shot (S-330) induces compressive stresses in engine crankshafts, while subsequent polishing with alumina ensures smoothness. This dual approach enhances fatigue life by 400% compared to single-step processes.

2.3 Equipment Dynamics: Pressure, Velocity, and Recycling

• Nozzle Design Impact: Venturi nozzles (suction-based) are ideal for lightweight media (e.g., corn cob), while direct-pressure nozzles excel with dense abrasives (e.g., steel grit). A 6-mm tungsten carbide nozzle handling aluminum oxide at 0.6 MPa achieves particle velocities of ~80 m/s, critical for deep etching.
• Recycling Efficiency: High-end systems like the Wheelabrator Eco-Cell use eddy current separators to recycle steel shot with 99% purity, reducing media waste to <1% and lowering operational costs by 25% in automotive foundries.

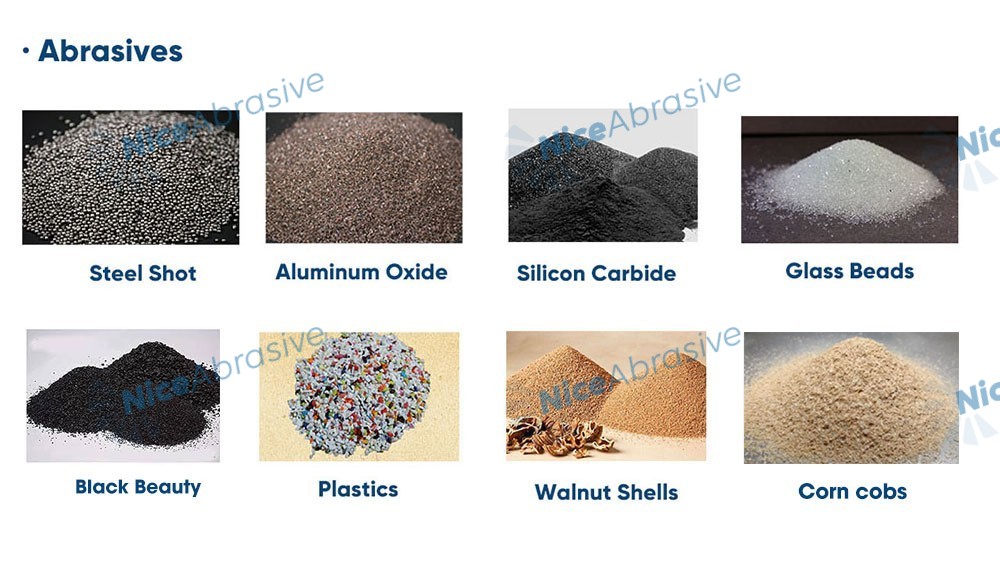

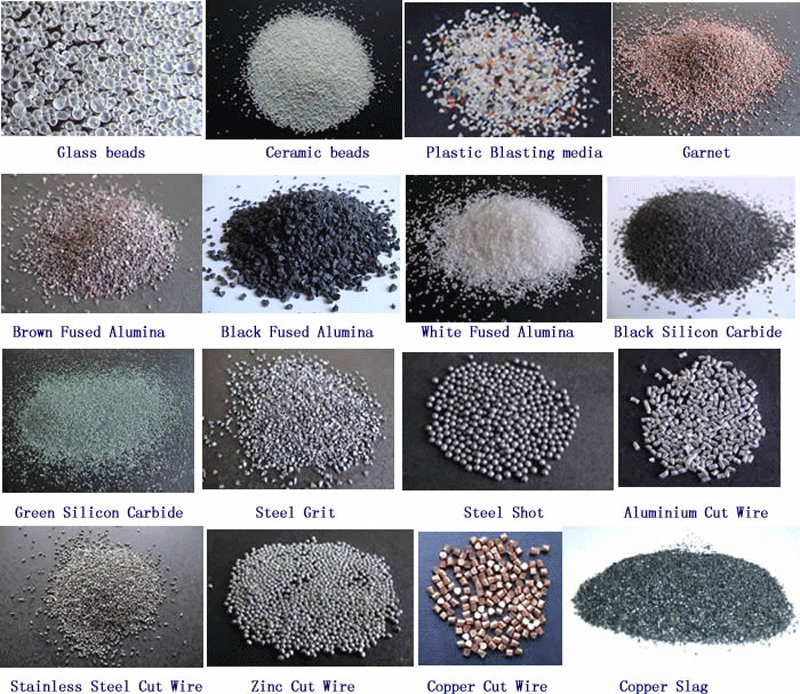

3. Detailed Analysis of Blasting Media Types

3.1 Mineral-Based Abrasives

3.1.1 Aluminum Oxide Grit: The Workhorse Abrasive

• Grades and Applications:
  • Brown Aluminum Oxide (BAO): Contains 94–97% Al₂O₃, ideal for heavy-duty tasks like removing mill scale from steel plates. BAO 46 mesh at 0.5 MPa removes 0.1–0.3 mm of material per pass.
  • White Aluminum Oxide (WAO): 99.5% pure, used in precision applications like deburring surgical stainless steel. WAO 220 mesh creates Ra 1.6 μm surfaces without micro-cracking.
• Wear Patterns: Angular BAO particles fracture during use, exposing fresh cutting edges, while WAO retains shape longer, making it suitable for consistent finishes over extended cycles.

3.1.2 Silicon Carbide Grit: The Ultra-Hard Performer

• Types:
  • Black Silicon Carbide (BSC): 含有游离碳，ideal for non-ferrous metals and ceramics. BSC 80 mesh etches 0.05 mm deep patterns into granite at 0.7 MPa.
  • Green Silicon Carbide (GSC): 97% pure, used for superalloys and glass. GSC 1200 mesh achieves sub-micron surface finishes on optical glass components.
• Environmental Considerations: Due to high energy consumption in production (20–30 kWh/kg), GSC is reserved for high-value applications like aerospace ceramic matrix composites (CMCs).

3.1.3 Pumice Grit: The Gentle Giant

• Particle Morphology: Porous structure with micro-fractures allows controlled abrasion. Pumice 120 mesh removes only 0.005–0.01 mm of material per pass on delicate silverware, preserving intricate designs.
• Specialized Use: In the pharmaceutical industry, pumice is USP-certified for cleaning tablet presses, ensuring no abrasive residue contaminates production lines.

3.2 Metallic Abrasives

3.2.1 Steel Shot: The Peening Specialist

• Heat Treatment Effects:
  • Annealed Shot (20–30 HRC): Soft, used for deburring aluminum castings without distortion. Annealed S-170 shot at 0.3 MPa produces Ra 3.2 μm on automotive transmission cases.
  • Hardened Shot (50–60 HRC): Durable, used in heavy-duty peening of truck springs. Hardened S-460 shot increases fatigue life from 1 million to 10 million cycles via compressive stress layers (0.3 mm deep).
• Sphericity Standards: ISO 11124-1 requires steel shot sphericity >90% for aerospace applications, ensuring uniform stress distribution.

3.2.2 Steel Grit: The Aggressive Stripper

• Manufacturing Processes:
  • Cut Grit: Produced by cutting wire, offers sharp edges for rapid stripping. Cut G-12 grit (2.8 mm) removes 1 mm of paint from steel structures in under 5 minutes at 0.8 MPa.
  • Crushed Grit: Formed by crushing shot, provides a balance of sharpness and durability. Crushed G-40 grit is preferred in shipyards for removing marine growth and anti-fouling coatings.
• Case Study: A bridge repainting project using G-25 grit achieved SSPC-SP6 (commercial blast) standards in 2 hours per 100 m², 30% faster than using aluminum oxide.

3.2.3 Nu-Soft Steel Shot: The Delicate Performer

• Microstructure: Low-carbon steel with ferrite-pearlite microstructure ensures malleability. NS-210 shot (1.4 mm) polishes titanium medical implants to Ra 0.4 μm without altering critical dimensions.
• Aviation Use: In aircraft interior cleaning, Nu-Soft shot removes grease from aluminum panels without damaging anodized coatings, a task impossible with harder abrasives.

3.3 Organic Abrasives

3.3.1 Corn Cob Grit: The Eco-Conscious Cleaner

• Particle Size Impact: Extra-coarse grit (14 mesh) removes decades-old varnish from wooden furniture, while extra-fine grit (325 mesh) cleans delicate electronic circuit boards without component damage.
• Agricultural Applications: In food processing, corn cob grit is USDA-approved for cleaning meat processing equipment, replacing harsh chemical cleaners.

3.3.2 Walnut Shell Grit: The Versatile Organic Media

• Oil Absorption: Walnut shells absorb 3–5 times their weight in oil, making them ideal for degreasing automotive engines. A single pass with 50-mesh walnut shell removes 95% of oil residue from cylinder heads.
• Aerospace Composite Work: On carbon fiber wing panels, walnut shell grit (80 mesh) at 0.2 MPa removes paint without delaminating the composite, a process validated by Boeing for 787 Dreamliner maintenance.

3.4 Synthetic and Specialty Abrasives

3.4.1 Glass Beads: The Polishing Expert

• Refractive Index Benefits: Soda-lime glass beads (refractive index 1.52) enhance surface reflectivity, making them ideal for stainless steel kitchen appliances. A 100-mesh bead blast achieves a #4 finish (Ra 0.8–1.6 μm) comparable to mechanical polishing.
• Medical Device Use: In orthodontics, glass beads (200 mesh) polish bracket surfaces to Ra <0.2 μm, reducing patient discomfort and plaque accumulation.

3.4.2 Plastic Abrasive Grit: The Non-Metallic Stripper

• Polymer Types:
  • Urea-Based Grit: Friable, ideal for removing powder coatings from aluminum extrusions. Urea grit 30 mesh at 0.4 MPa strips 50 μm coatings without scratching.
  • Melamine Grit: Harder, used for deflashing injection-molded plastics. Melamine 60 mesh removes 0.1 mm flash from polypropylene parts with ±0.02 mm precision.
• E-Waste Recycling: Plastic grit safely removes solder masks from 废旧 PCBs, enabling 95% component recovery without hazardous chemicals.

3.4.3 Kramblast Crushed Glass Grit: The Sustainable Stripper

• Impact Velocity Studies: At 60 m/s, Kramblast coarse grit removes 0.2 mm of epoxy coating from concrete, while fine grit at 40 m/s profiles concrete for flooring adhesives (I-C rating per ASTM C859).
• LEED Compliance: Used in green building projects, Kramblast reduces silica dust by 90%, helping achieve Indoor Environmental Quality (IEQ) credits.

3.4.4 Copper Slag/Iron Silicate: The Heavy-Duty Byproduct

• Particle Density: At 4.2 g/cm³, copper slag sinks in water, making it suitable for underwater blasting of offshore rigs. A 2019 study showed copper slag outperforms sand in saltwater environments, with 25% less media consumption.
• Abrasion Resistance: Microhardness of 650 HV ensures 10–15 reuse cycles, compared to 5–7 for sand, lowering costs in large-scale projects like wind turbine tower maintenance.

4. Media Blasting vs. Bead Blasting: Technical Deep Dive

4.1 Surface Roughness Analysis

• Bead Blasting: Produces isotropic roughness with low Rz/Ra ratio (typically 4–6), ideal for optical components. Glass beads (150 mesh) on aluminum yield Ra 0.6 μm, Rz 3.5 μm.
• Media Blasting (Angular): Higher Rz/Ra ratio (8–12) creates deeper valleys, improving coating adhesion. Steel grit (G-40) on carbon steel achieves Ra 50 μm, Rz 400 μm, meeting SSPC-SP10 requirements.

4.2 Residual Stress Comparison

• Bead Blasting: Induces shallow compressive stresses (20–50 MPa at 20 μm depth), suitable for non-load-bearing components like decorative trim.
• Shot Blasting (Steel Shot): Generates deep compressive stresses (200–500 MPa at 200 μm depth), critical for aerospace fasteners and automotive suspension parts.

5. Industrial Applications: Advanced Case Studies

5.1 Aerospace: Turbine Blade Overhaul

• Media Sequence:
  1. Dry Ice Blasting: Removes thermal barrier coatings (TBCs) without substrate damage. CO₂ particles at -78°C sublimate upon impact, leaving no residue.
  2. Aluminum Oxide (180 mesh): Cleans base metal, creating Ra 2.5 μm for TBC reapplication.
  3. Ceramic Beads (Al₂O₃, 250 mesh): Polishes leading edges to Ra 0.8 μm, optimizing aerodynamics.
• Performance Gains: This three-step process reduces blade overhaul time by 35% while extending service life by 200 hours.

5.2 Automotive: EV Battery Component Processing

• Challenge: Deburring delicate aluminum battery casings without metal contamination.
• Solution: Wet blasting with 200-mesh plastic grit (melamine-based) at 0.3 MPa.
• Results: Removes burrs <0.05 mm while maintaining ±0.01 mm dimensional accuracy. Media recycling via hydrocyclones achieves 90% reuse, cutting costs by $1.20 per casing.

5.3 Marine: Offshore Platform Corrosion Control

• Media Choice: Copper slag (coarse grade) with 75% passing 1.7 mm sieve.
• Process Parameters: 0.7 MPa pressure, 150 mm standoff distance, 45° angle.
• Outcome: Achieves ISO 8501-1 Sa 2.5 (near-white metal) in 4 hours per 50 m², with residual salt contamination <50 mg/m², critical for offshore coating longevity.

5.4 Medical Devices: Catheter Tip Polishing

• Media: 325-mesh pumice mixed with deionized water (slurry concentration 20%).
• Process: Low-pressure wet blasting (0.15 MPa) for 10 seconds per tip.
• Result: Surface roughness reduced from Ra 1.2 μm to 0.2 μm, meeting FDA requirements for biocompatibility and minimizing thrombogenic risk.

6. Best Practices: Advanced Process Optimization

6.1 Triboelectric Charging Control

• Issue: Dry blasting with plastic media can generate static charges, attracting media to the workpiece.
• Solution: Introduce ionized air streams or use anti-static additives (e.g., 0.5% glycerin in wet systems) to neutralize charges, ensuring uniform coverage on insulative materials like PVC.

6.2 Automated Media Delivery Systems

• Case Study: A large-scale foundry implemented a robotic blasting cell with real-time particle size analysis. Laser diffraction sensors monitor media degradation, automatically switching from 80-mesh to 120-mesh aluminum oxide as particles wear, maintaining consistent surface roughness (Ra 12.5 μm ±10%).

6.3 Subsurface Damage Prevention

• Critical Velocity Limits: For titanium alloys, avoid particle velocities >70 m/s with angular media to prevent adiabatic shear banding. Finite element analysis (FEA) models help predict safe velocity thresholds based on media hardness and part geometry.

7. Cost Analysis: Total Cost of Ownership (TCO) Models

7.1 Media Lifecycle Cost

7.2 ROI of Recycling Systems

• Example: A motorcycle manufacturer investing $50,000 in a steel shot recycling system (efficiency 95%) saves $18,000 annually in media costs, with a payback period of 2.8 years. The system reduces waste to 10 tons/year from 200 tons, aligning with circular economy goals.

8. Emerging Trends in Blasting Media

8.1 Nanotechnology-Enhanced Abrasives

• Graphene-Coated Media: Lab-scale tests show aluminum oxide particles coated with graphene exhibit 30% less wear, extending reuse cycles from 50 to 70. Graphene’s lubricating properties also reduce friction during blasting, lowering energy consumption by 15%.
• Self-Healing Abrasives: Research at MIT demonstrates particles with embedded healing agents that repair micro-cracks during use, maintaining cutting efficiency over extended cycles.

8.2 AI-Driven Media Selection Tools

• Machine Learning Models: Companies like BlastIQ offer AI platforms that predict optimal media based on workpiece material (input via spectrometer), desired finish (input via 3D profilometry), and equipment specs. Accuracy rates exceed 92% in field tests.
• Digital Twin Integration: Siemens’ NX Blasting module simulates media impact on virtual prototypes, allowing engineers to validate media choices in silico before physical trials, reducing R&D time by 40%.

8.3 Sustainable Innovations

• Sea Glass Abrasives: Recycled ocean glass, processed into angular particles, offers similar performance to Kramblast with a 50% lower carbon footprint. A pilot project in California reduced marine debris by 2 tons while producing 5 tons of usable media.
• Edible Abrasives: Potato starch-based media, developed by Dutch startup EcoBlast, are fully biodegradable and safe for food waste streams. Trials in meat processing plants show they replace 30% of plastic grit use.

9. Regulatory and Safety Considerations

9.1 Global Compliance Standards

• EU REACH: Restricts use of media containing heavy metals (e.g., lead in old glass beads). Non-compliant media can face fines up to €50,000.
• OSHA Silica Rule: Requires respiratory protection when using crystalline silica-based media (e.g., sand). Non-compliance penalties start at $13,653 per violation.
• ISO 14001: Mandates proper disposal of hazardous media (e.g., spent steel grit contaminated with paint). Certifications require detailed waste tracking logs.

9.2 Personal Protective Equipment (PPE) Advancements

• Smart Respirators: 3M’s Versaflo TR-800 includes real-time dust monitors that alert workers when silica levels exceed 0.02 mg/m³, 2.5x below OSHA PEL.
• Haptic Feedback Gloves: Developed by FESTO, these gloves vibrate when media pressure exceeds safe limits (e.g., >0.6 MPa for hand-held blasting), preventing operator fatigue and over-processing.

10. Conclusion: The Future of Blasting Media

• Hyper-Personalization: AI and digital twins enabling media tailored to individual part geometries.
• Circular Economy Integration: Recycled and bio-based media replacing virgin materials in >50% of applications by 2030.
• Non-Destructive Innovation: Nanoscale and ice blasting expanding into microelectronics and heritage conservation.
